Description

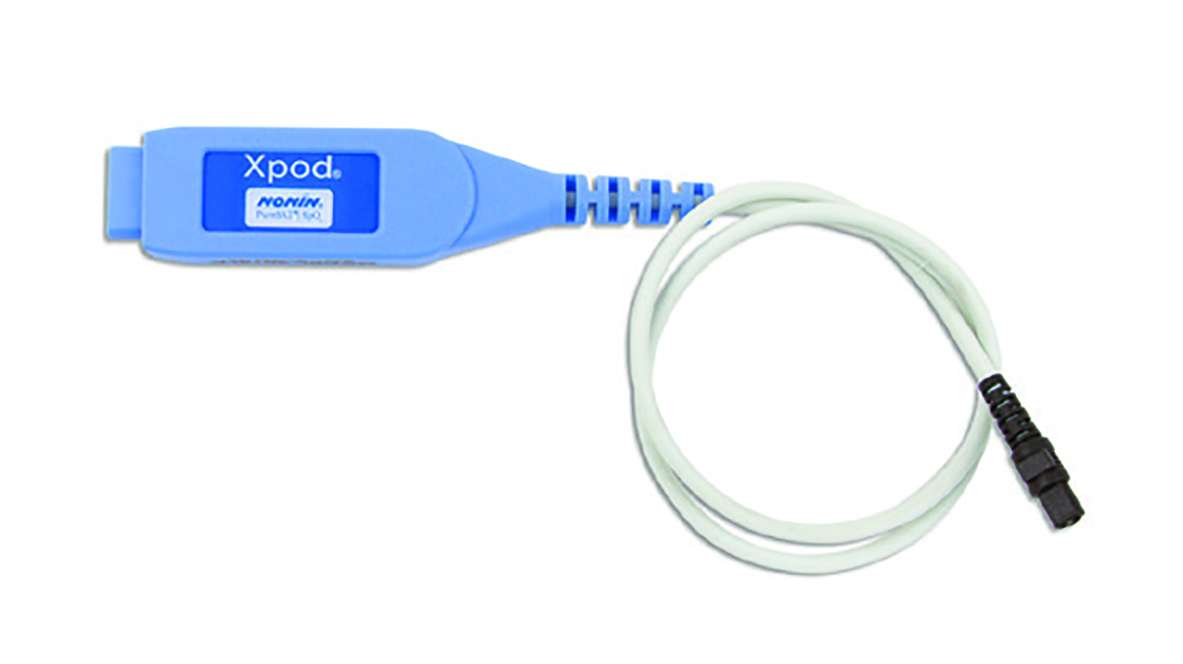

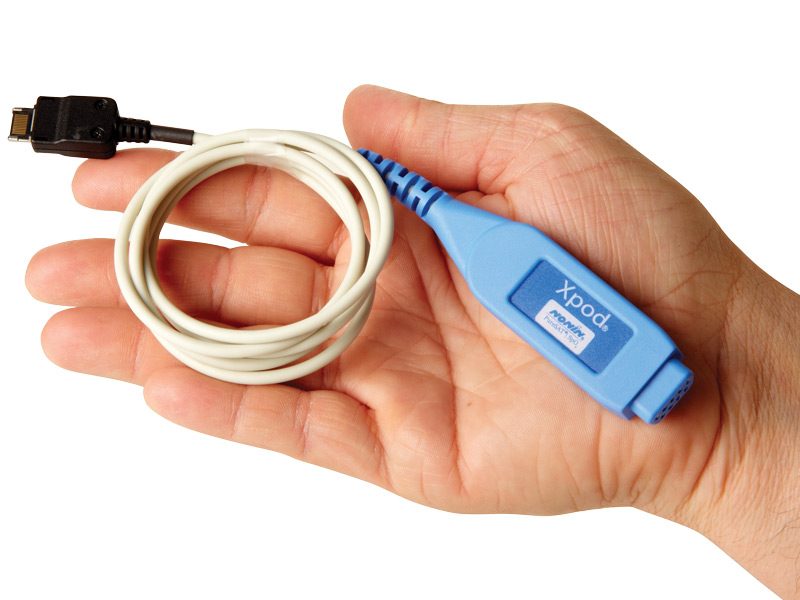

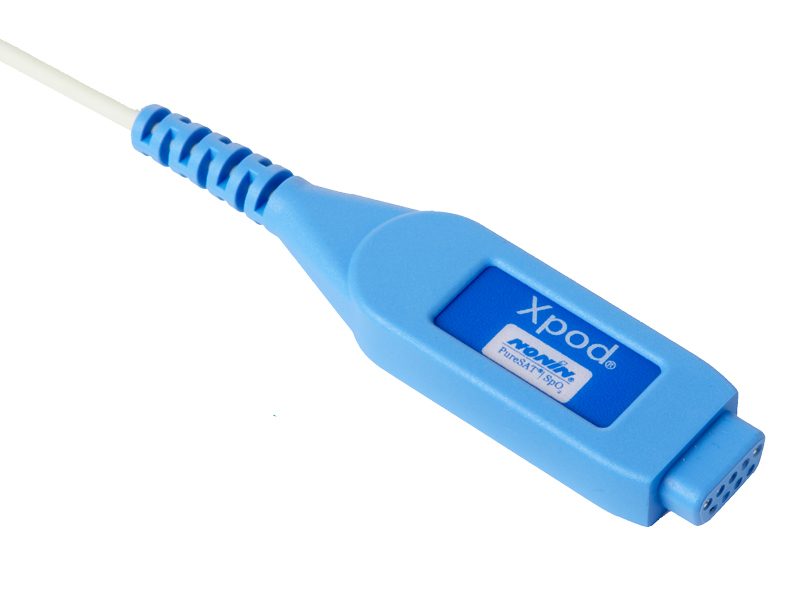

Quick answer: The Nonin XPOD 3012LP is a compact, low-power external pulse oximetry module that adds Nonin SpO₂ and pulse-rate monitoring to a host medical device. It connects a Nonin sensor to your monitor through an external port — so it doesn’t require space inside the device housing — and uses PureSAT® signal processing with PureLight® sensor technology for accurate readings even in motion and low perfusion. Reference code: 22374.
What is the XPOD 3012LP?

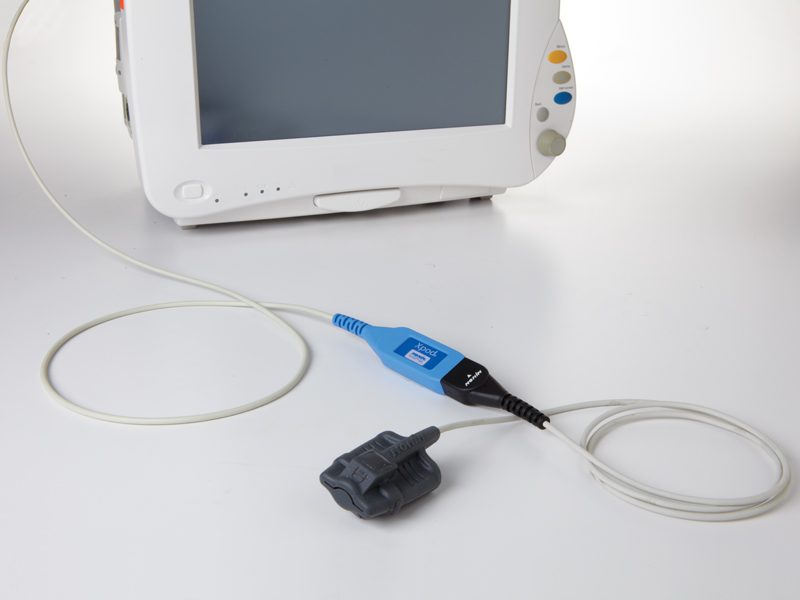

The XPOD is an OEM integration module rather than a standalone, patient-ready oximeter: it provides the pulse oximetry “engine” that a host device (monitor or system) uses, with a Nonin sensor plugged into it. Nonin external modules connect to medical devices through an external port to make integration faster and more efficient, offering plug-and-play adaptability and a compact size that doesn’t require space in the system’s housing, while delivering Nonin’s industry-leading SpO₂ technology. It’s clinically validated for use in challenging conditions such as motion and low perfusion.
Key features
- External, plug-and-play OEM module — adds SpO₂ without internal housing space.
- PureSAT® + PureLight® — accurate, responsive readings in motion and low perfusion.
- Low power draw — under 35 mW @ 3.3V, ideal for small portable products.
- High Resolution Pulse Oximetry (HRPO) — SpO₂ to the tenths decimal place.
- PPG digital output — for physiologic timing applications.
- Connector options — available with Mini-12 or USB.
- RoHS compliant — meets hazardous-substance restrictions.
Specifications
| Specification | Detail |
|---|---|
| Product type | External OEM pulse oximetry module |
| SpO₂ range | 0–100% |
| Pulse rate range | 18–321 BPM |
| SpO₂ accuracy | 70–100% (Arms) |
| Wavelengths | Red 660 nm / IR 910 nm |
| Power | < 35 mW @ 3.3V |
| Connector | Mini-12 or USB (confirm) |
| Sensor compatibility | Nonin 8000-series reusable, 7000 / 6000C disposable |
| Reference code | 22374 |
Is it compatible with my system?
The XPOD comes in different configurations (connector type and, in some cases, host-specific versions), so confirm that this unit matches your host device and connector before ordering. It works with a wide range of Nonin PureLight sensors. If you’re integrating it into a specific monitor or system, contact us with the details and we’ll help verify compatibility.
Frequently asked questions
Is this a standalone oximeter?
No — it’s an OEM module that adds Nonin SpO₂ monitoring to a host device. You also need a compatible host system and a Nonin sensor.
What sensors does it use?
A range of Nonin PureLight sensors, including 8000-series reusable and 7000/6000C disposable sensors.
What connector does it have?
The XPOD is available with Mini-12 or USB connectors — confirm which configuration you need.
What makes it accurate?
Nonin PureSAT signal processing and PureLight sensor technology, validated for motion and low-perfusion conditions.
Can I get it delivered in Brooklyn or shipped nationwide?
Yes — Stark Medical Supplies offers local pickup and delivery in Brooklyn and across NYC, plus USPS shipping throughout the continental U.S.
This is a medical device component intended for OEM integration and clinical use. Use it according to the manufacturer’s instructions and your healthcare provider’s or integrator’s guidance.
